Astoria Simulation: New Bathymetry

Bathymetry (fathoms)

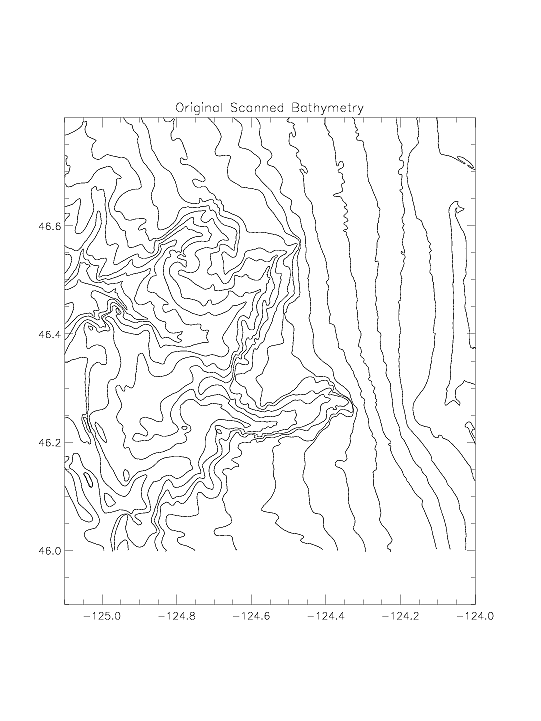

Original scanned data image (over model domain)

Original scanned data Postscript file (over model domain)

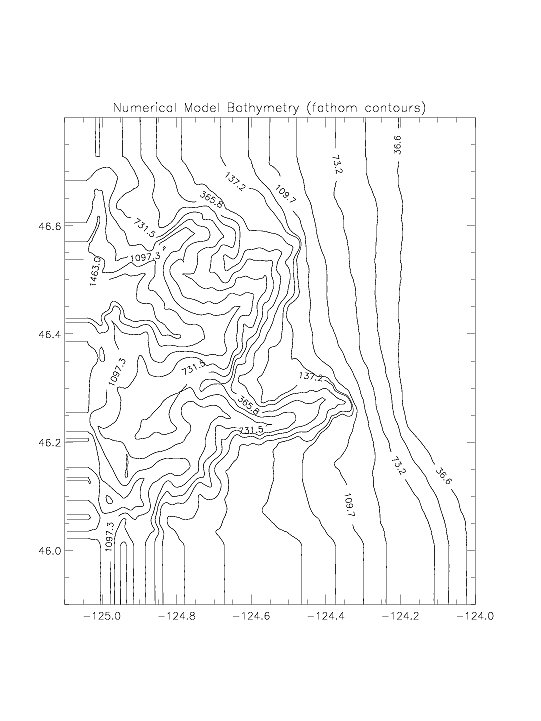

"Rough" gridded bathymetry image

"Rough" gridded bathymetry Postscript file

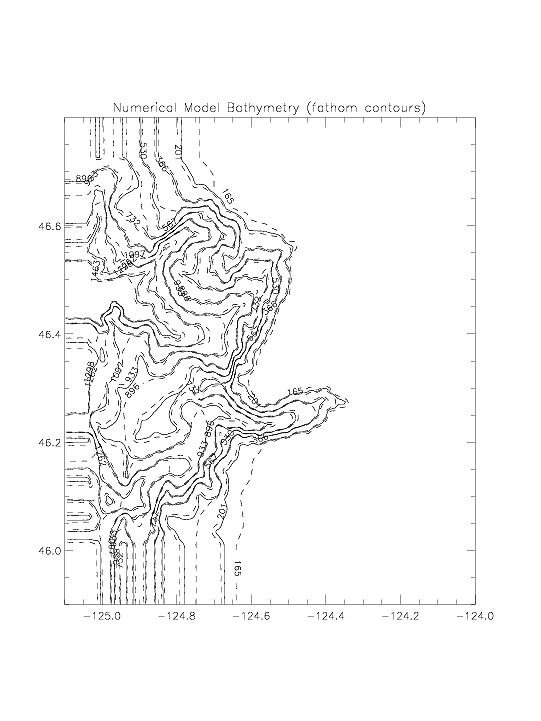

"Rough" gridded bathymetry image (Busy version)

"Rough" gridded bathymetry Postscript file (Busy version)

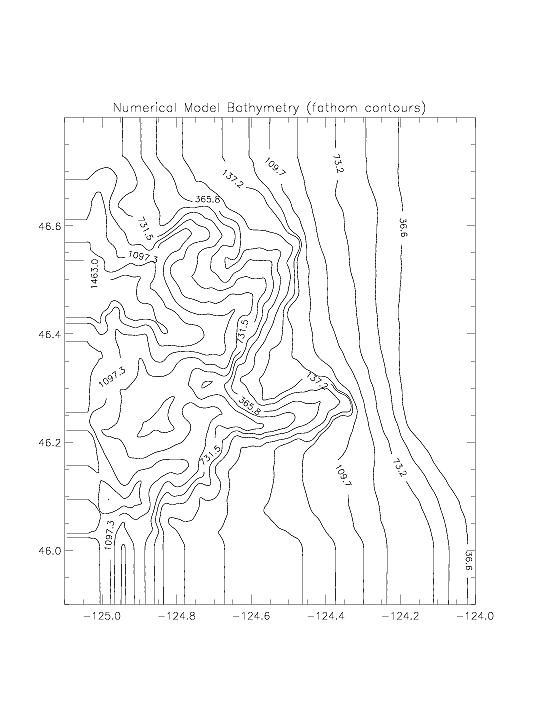

"Smooth" gridded bathymetry image

"Smooth" gridded bathymetry Postscript file

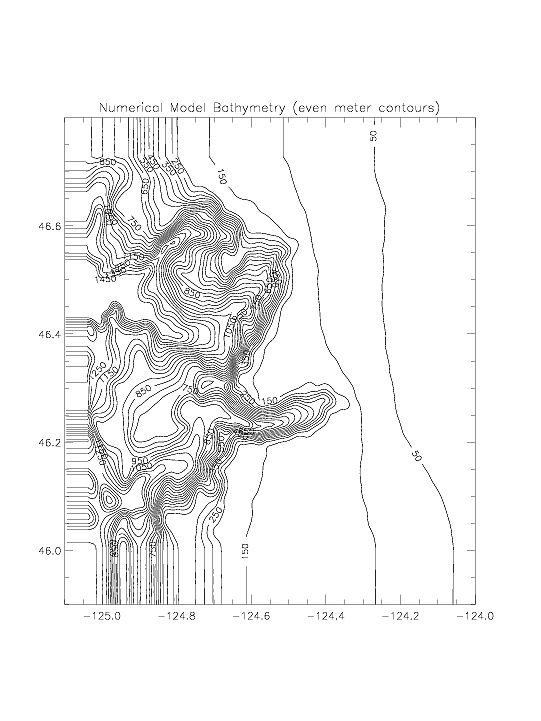

Bathymetry (50m contours)

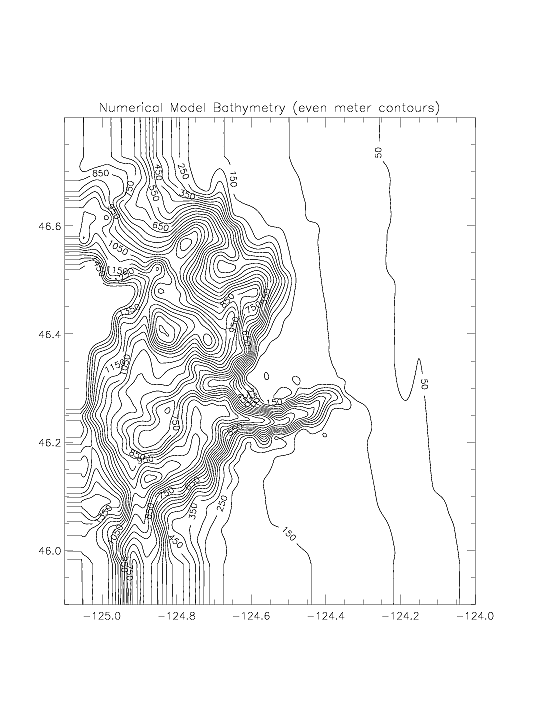

Old gridded bathymetry image

Old gridded bathymetry Postscript file

"Rough" gridded bathymetry image

"Rough" gridded bathymetry Postscript file

"Smooth" gridded bathymetry image

"Smooth" gridded bathymetry Postscript file

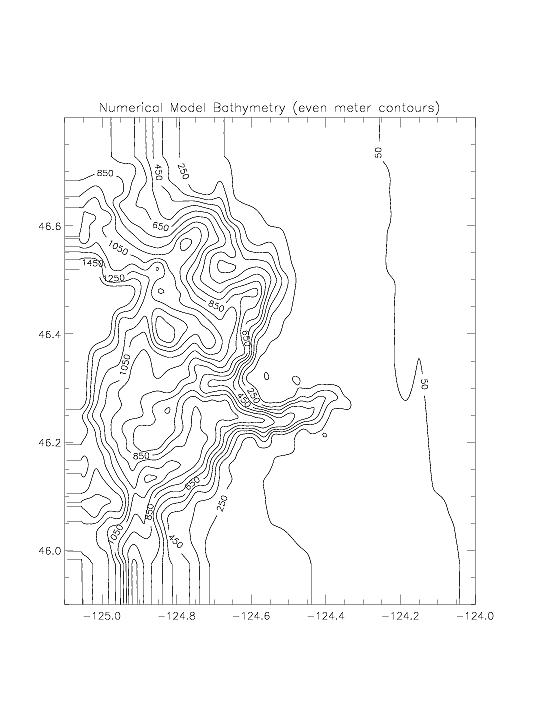

Bathymetry (100m contours)

Old gridded bathymetry image

Old gridded bathymetry Postscript file

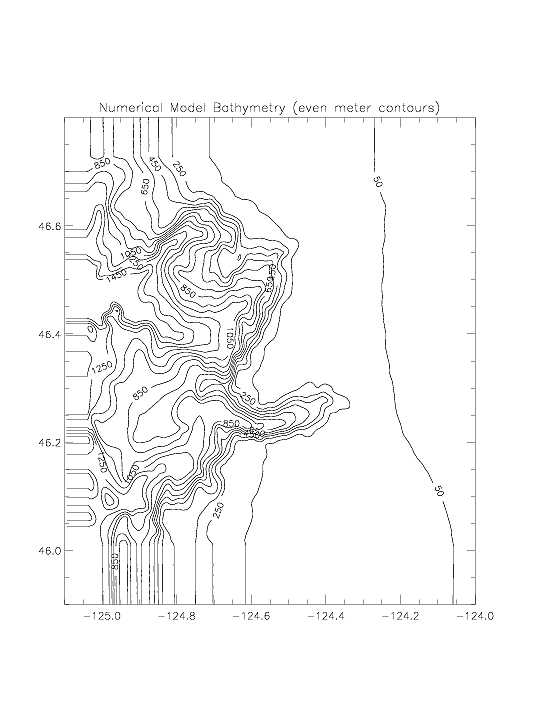

"Rough" gridded bathymetry image

"Rough" gridded bathymetry Postscript file

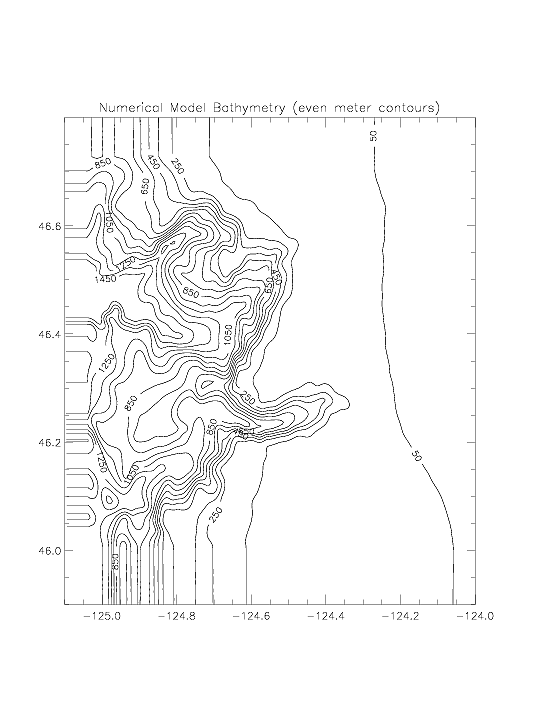

"Smooth" gridded bathymetry image

"Smooth" gridded bathymetry Postscript file

Simulation: No Winds

Flow at 200m image

Flow at 200m Postscript file

Flow at 600m image

Flow at 600m Postscript file

Simulation: Steady Upwelling Winds

Flow at 100m image

Flow at 100m Postscript file

Flow at 150m image

Flow at 150m Postscript file

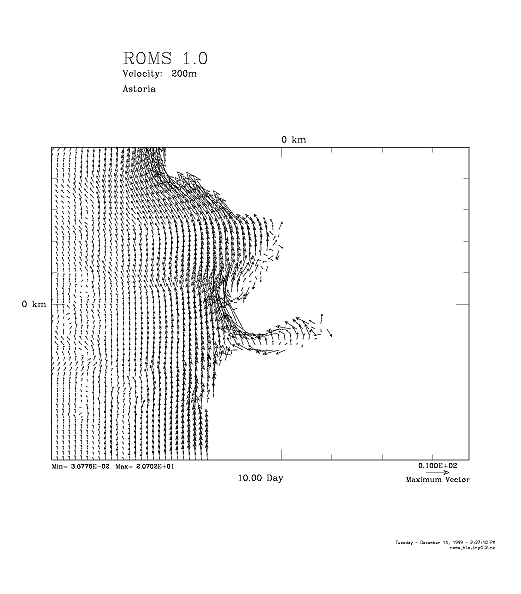

Flow at 200m image

Flow at 200m Postscript file

Flow at 400m image

Flow at 400m Postscript file

Flow at 600m image

Flow at 600m Postscript file

Simulation: Steady Downwelling Winds

Flow at 100m image

Flow at 100m Postscript file

Flow at 150m image

Flow at 150m Postscript file

Flow at 200m image

Flow at 200m Postscript file

Flow at 400m image

Flow at 400m Postscript file

Flow at 600m image

Flow at 600m Postscript file

Simulation: Steady Upwelling Winds (Try II)

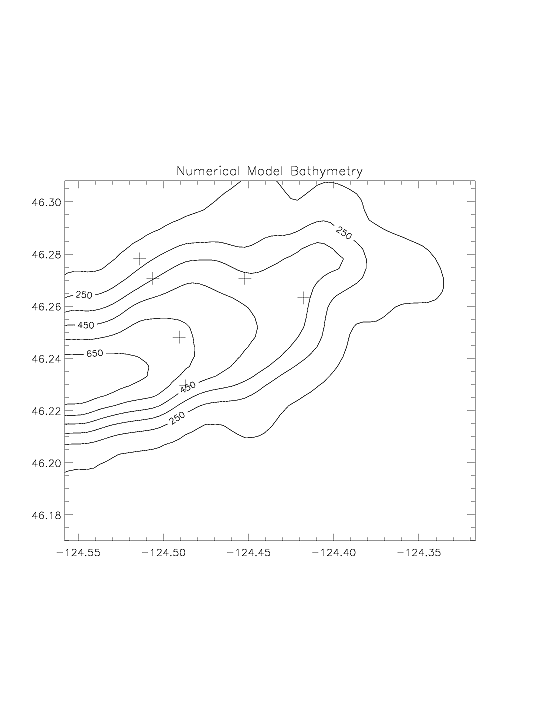

Canyon bathymetry image

Canyon bathymetry Postscript file

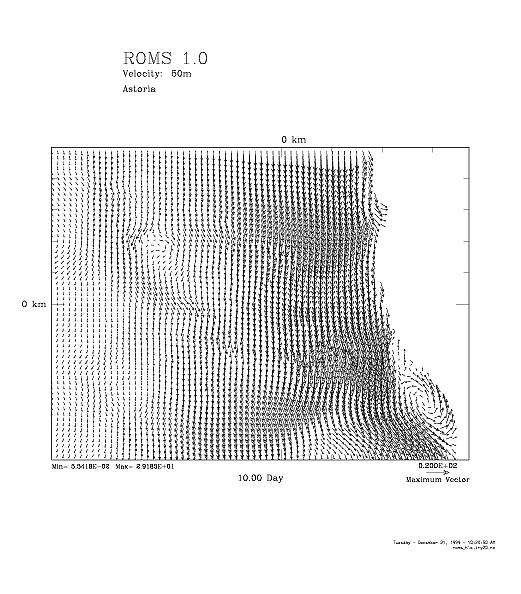

Flow at 50m image

Flow at 50m Postscript file

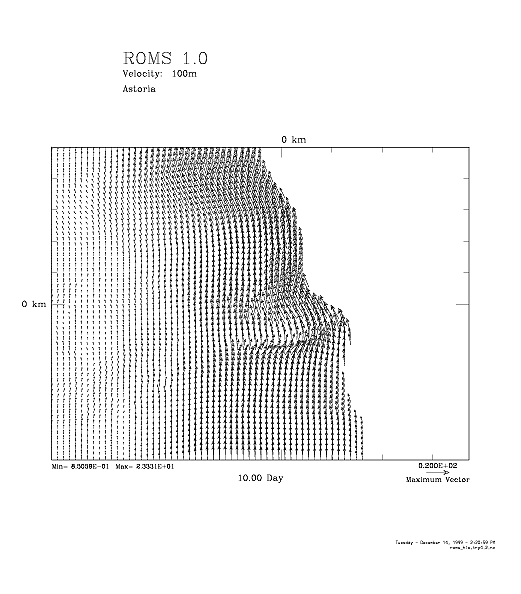

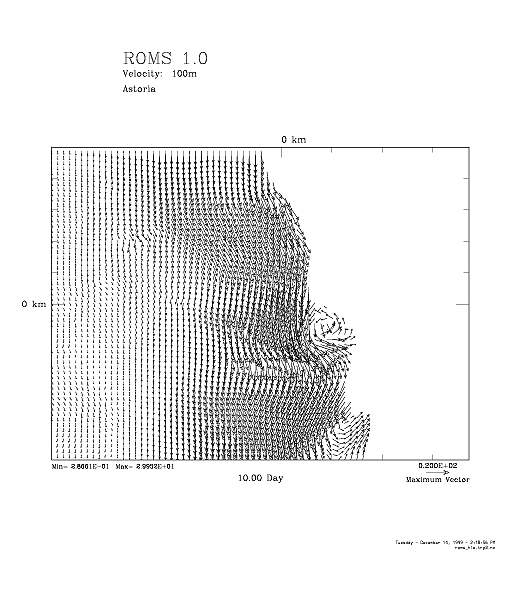

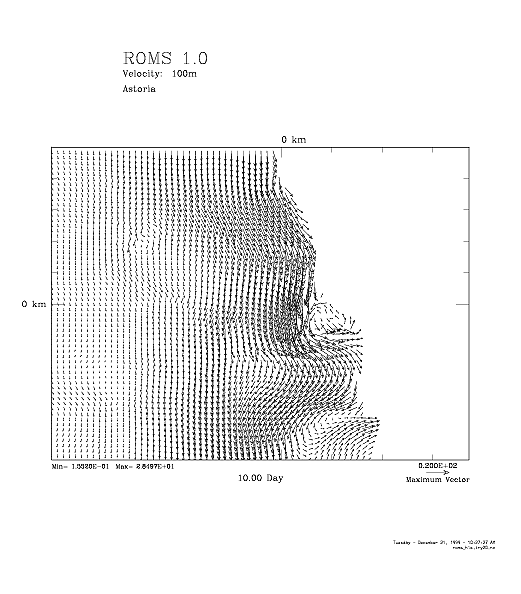

Flow at 100m image

Flow at 100m Postscript file

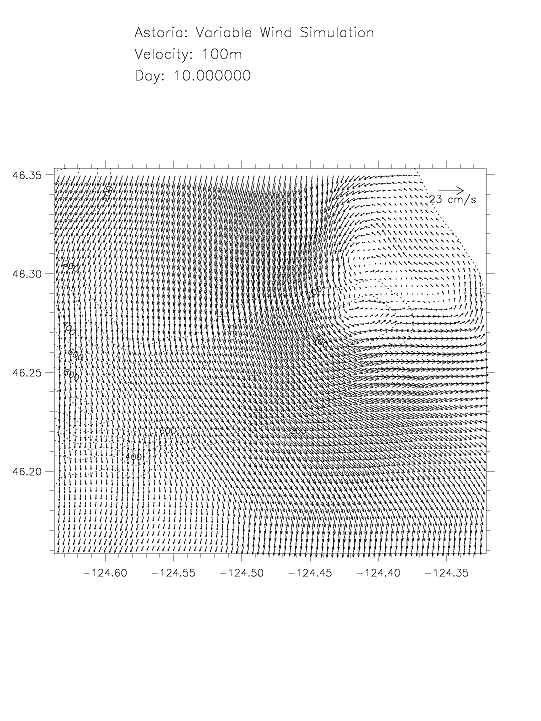

Flow at 100m detailed image

Flow at 100m detailed Postscript file

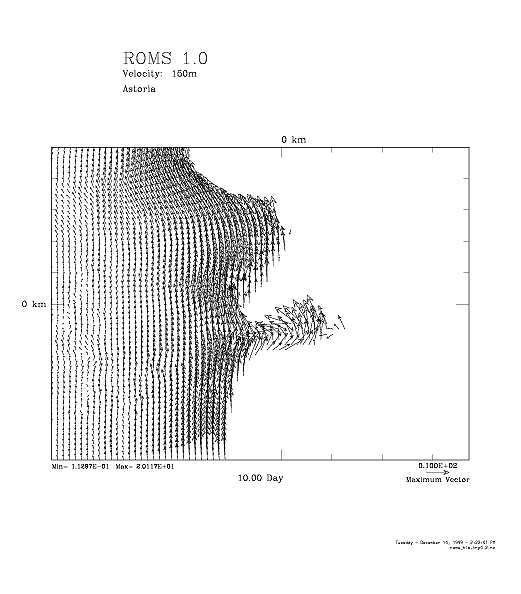

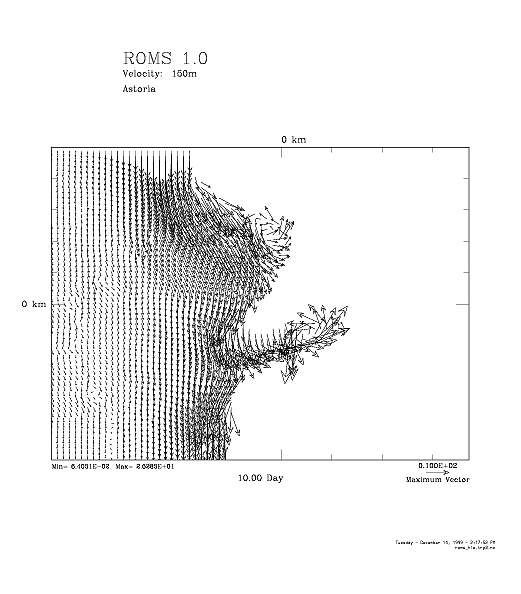

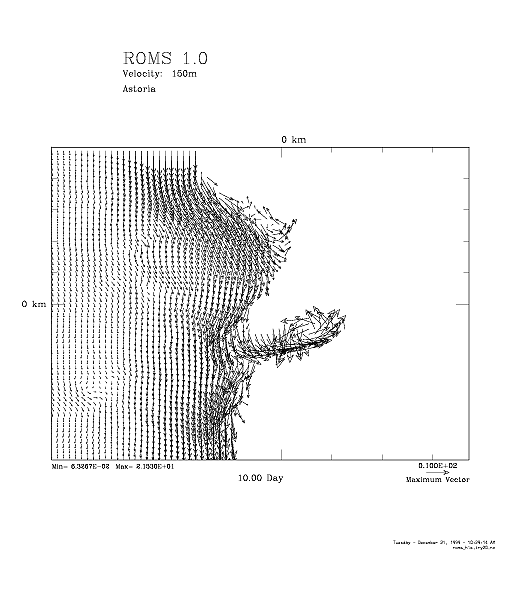

Flow at 150m image

Flow at 150m Postscript file

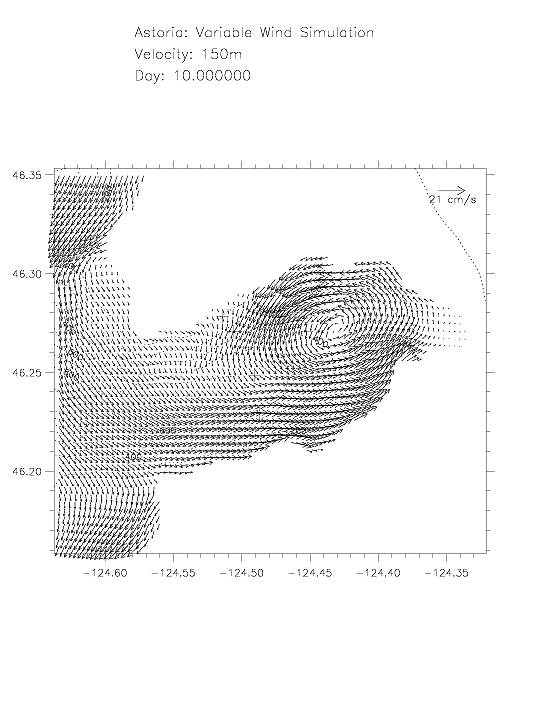

Flow at 150m detailed image

Flow at 150m detailed Postscript file

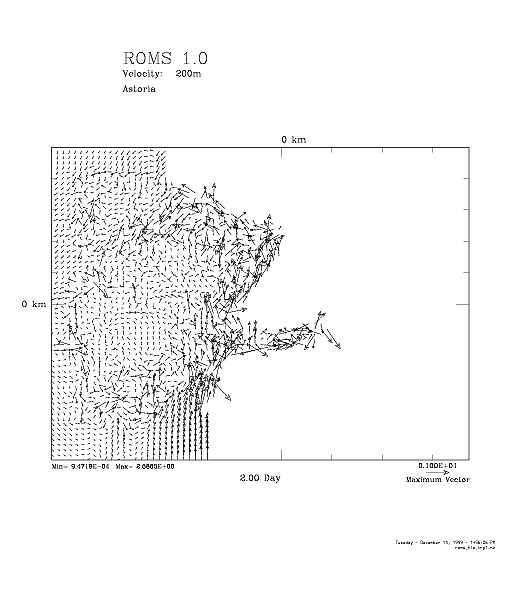

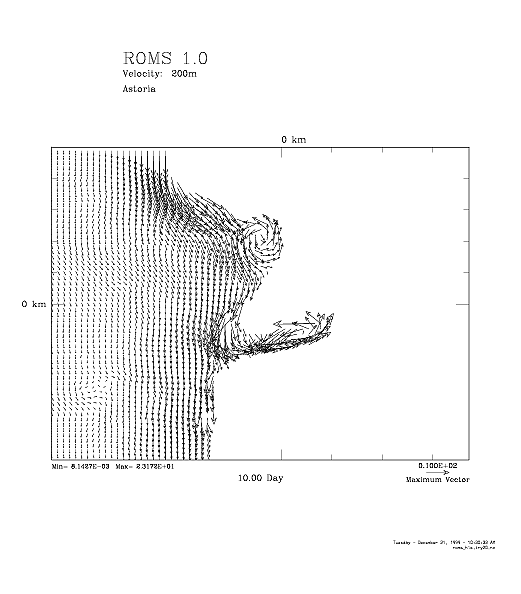

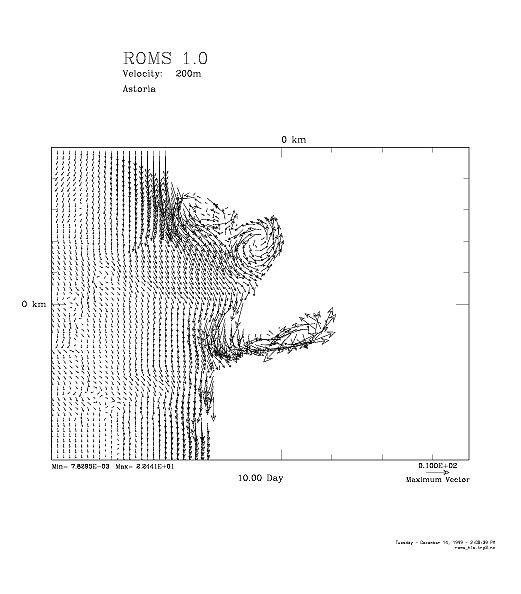

Flow at 200m image

Flow at 200m Postscript file

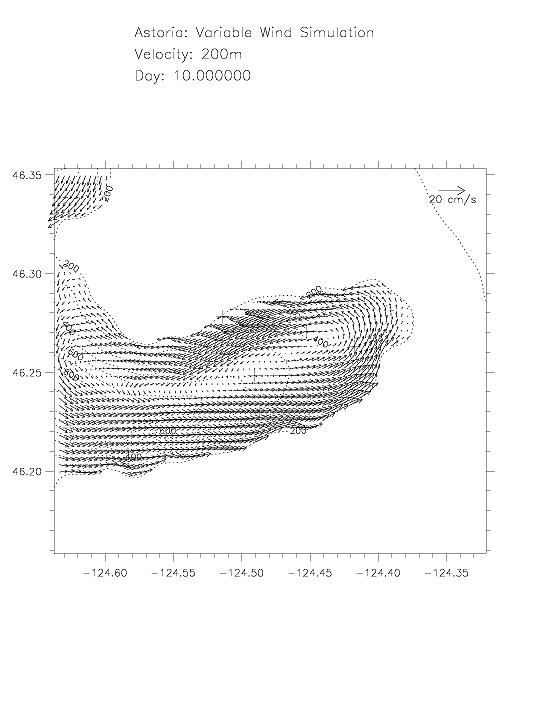

Flow at 200m detailed image

Flow at 200m detailed Postscript file

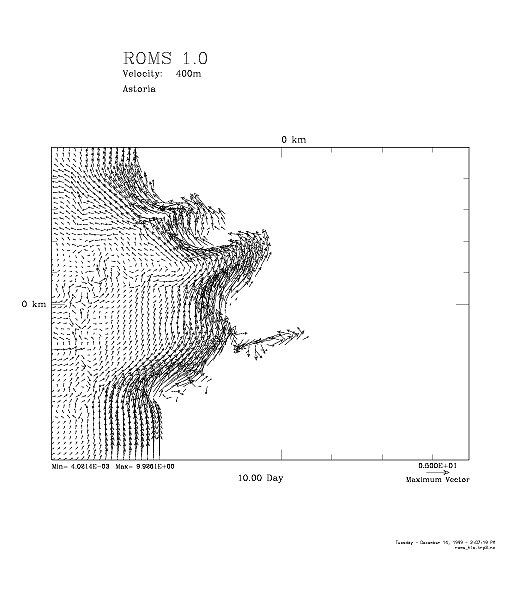

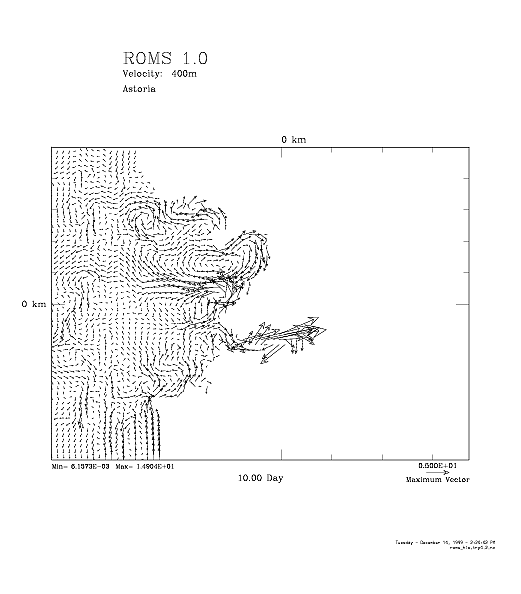

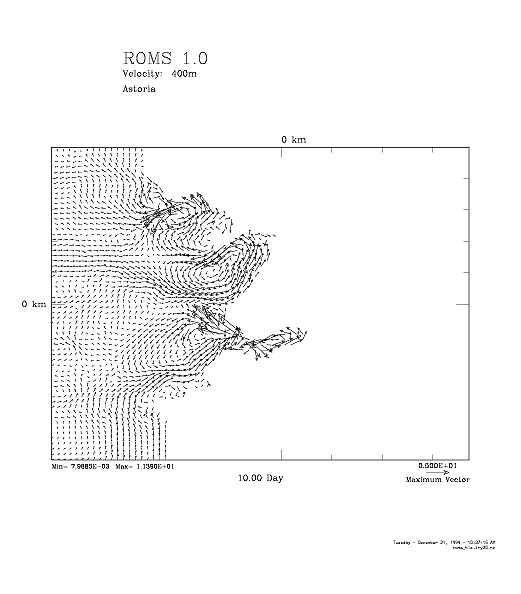

Flow at 400m image

Flow at 400m Postscript file

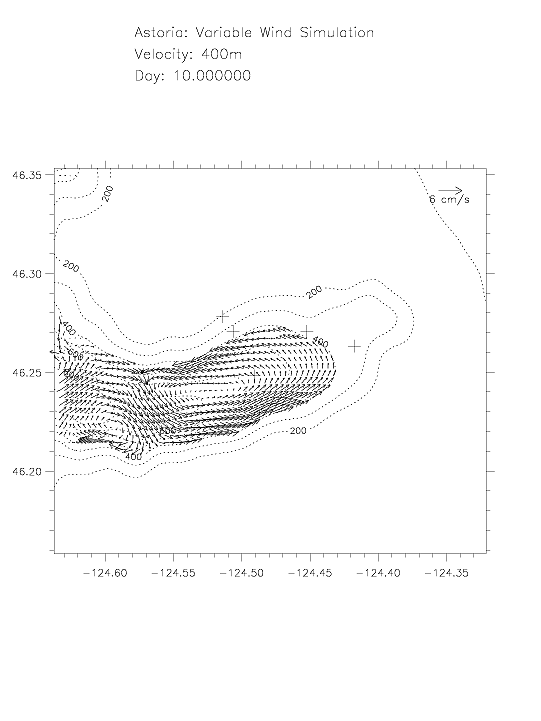

Flow at 400m detailed image

Flow at 400m detailed Postscript file

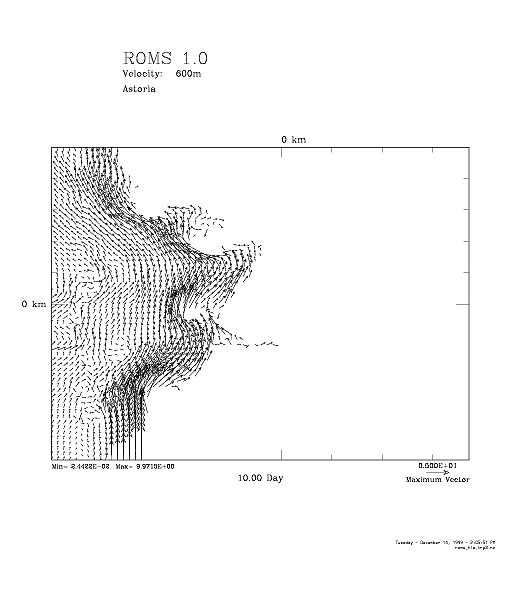

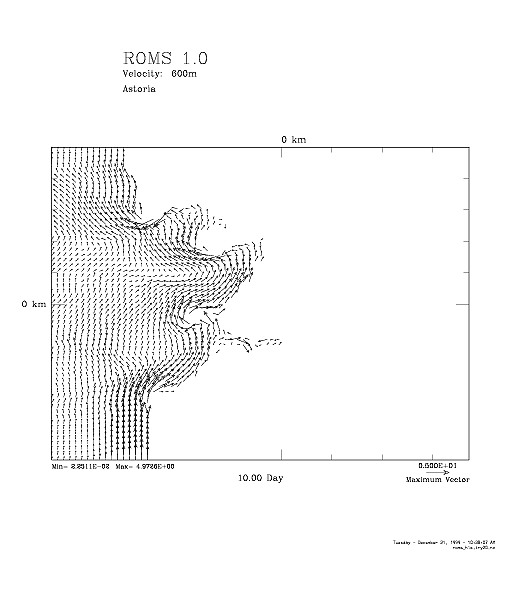

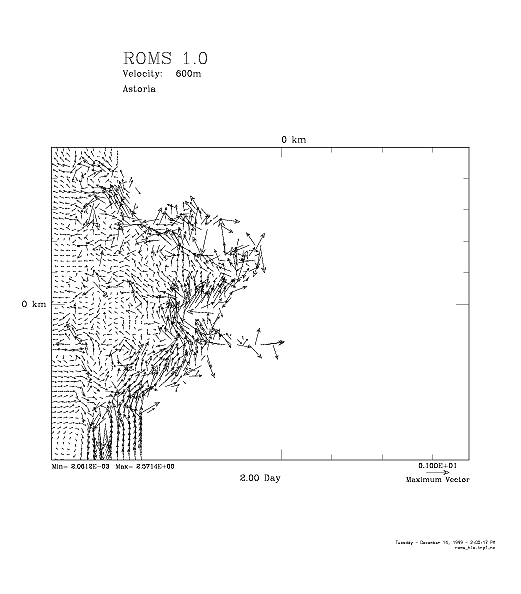

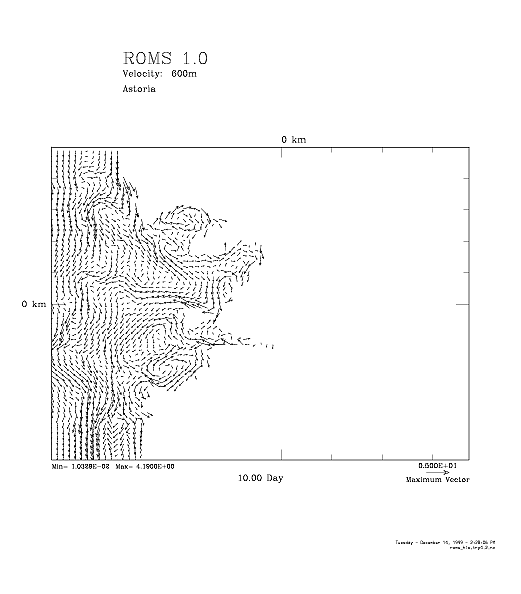

Flow at 600m image

Flow at 600m Postscript file
